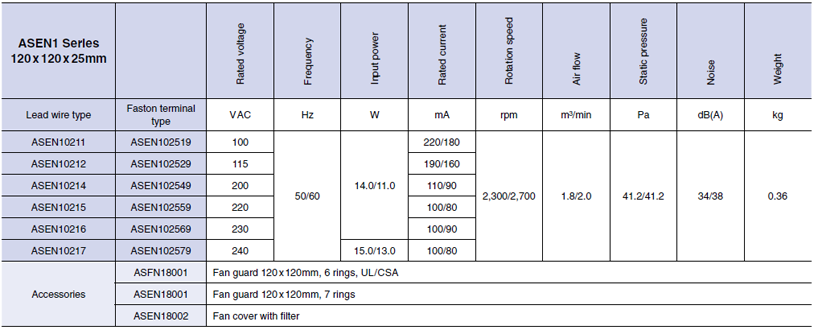

AC Fans 120 x 120 x 25mm
- Dimensions: 120 x 120 x 25mm
- 6 rated voltages: 100VAC to 240VAC
- Frame: die-cast aluminum
- Propeller: reinforced plastic
- RoHS-compliant

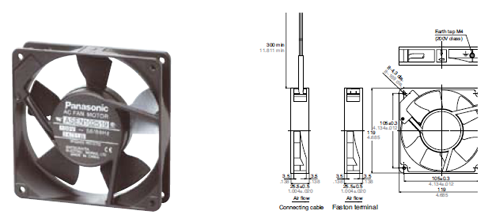

Diagram
Materials used
- Frame: Aluminum alloy
- Fan blades: Fiberglass-reinforced plastic
- Bearings: Ball bearings
- Lead wires: UL3266 and AWG22
- Faston terminal: Faston #110
Specifications
- Operating voltage:±10% of rated voltage
- Ambient temperature:Storage: -20℃ to +70℃; operation: -10℃ to +60℃
- Ambient humidity:Max. 85% (RH)
- Temperature rise:Coil: max. 50℃; surface: max. 20℃
- Breakdown voltage:1,500VAC for 1min
- Insulation resistance:Min. 100MO (at 500VDC)
- Vibration resistance:10 to 55Hz; amplitude 0.75mm; applied for 10min in 3 directions
- Protection:Impedance protected
- Lifetime:50,000 hours
