DC Fans 80 x 80 x 25mm

diagram of panasonic dc fan
  • Dimensions: 80 x 80 x 25mm
  • Rated voltages: 12VDC, 24VDC
  • Several rotation speeds per model
  • Blockage protection with automatic restart
  • Reverse polarity and overvoltage protection
  • Optional: Lock sensor output (alarm is triggered if fan is blocked)
  • RoHS-compliant

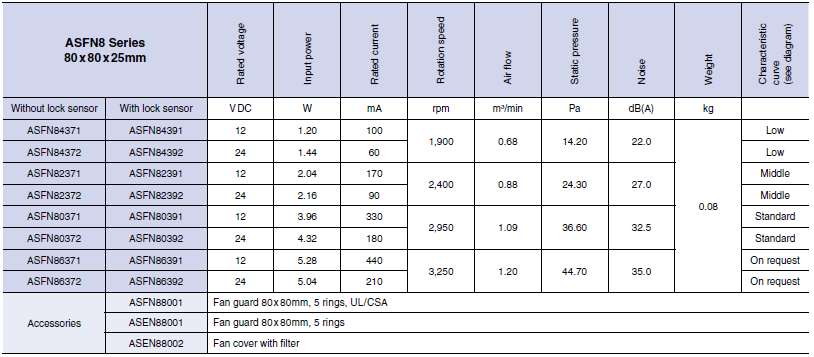

specifications of pansonic dc fans


airflow graph for pansonic dc fans

Materials used

  • Frame: Plastic
  • Fan blades: Plastic
  • Bearings: Ball bearings
  • Lead wires: UL1007 and AWG24


  • Operating voltage:At 12V: 6 ~ 13.8V; at 24V: 10 ~ 27.6V
  • Ambient temperature:-10℃ to +60℃
  • Ambient humidity:Max. 95% (RH)
  • Temperature rise:Coil: max. 50℃; surface: max. 20℃
  • Breakdown voltage:500VAC for 1min (between lead wires and frame)
  • Insulation resistance:Min. 10MO (at 500VDC)
  • Lead wire tensile strength:9.8N at 15s
  • Vibration resistance:10 to 55Hz; amplitude 0.75mm; applied for 10min in 3 directions
  • Fan blockage:No coil burnout after 72-hour blockage at nominal voltage
  • Reverse polarity protection:No damage after brief reverse polarity connection at nominal voltage
  • Lifetime:60,000 hours
