Metal circular connectors - 90° angled adapters
The angled adapter makes it possible to align the Toughcon panel-mounted receptacles at 90° to the attachment surface. The Toughcon is attached to the angled adapter by means of four M3 screws (not included in the scope of supply)
Material Zinc die-cast
Temperature Range -55℃ to +90℃
Scope of supply Flange bracket with o-ring-seal to attachment surface
Accessories Seals TM118GSK, TM178GSK, TM238GSK

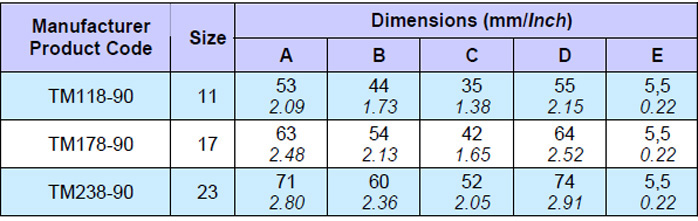

TM118-90, TM178-90, TM238-90
Metal circular connectors - Contact support holders
The contact support holder is used for holding the contact support in the shell with plugs and receptacles of the Toughcon TM series. The contact support holder is part of the scope of supply for panel-mounted receptacles and cable-mounted receptacles.
Material Anodised aluminium
Temperature Range -55℃ to +90℃
Scope of supply Contact support holder

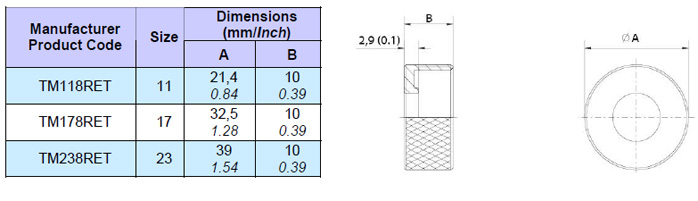

TM118RET, TM178RET, TM238RET
